Description
Our Ductile Iron 45˚ Double Socket BEND (PVC) is available with body bores ranging from DN80 to DN2600 and branch bores from DN80 to DN2600.

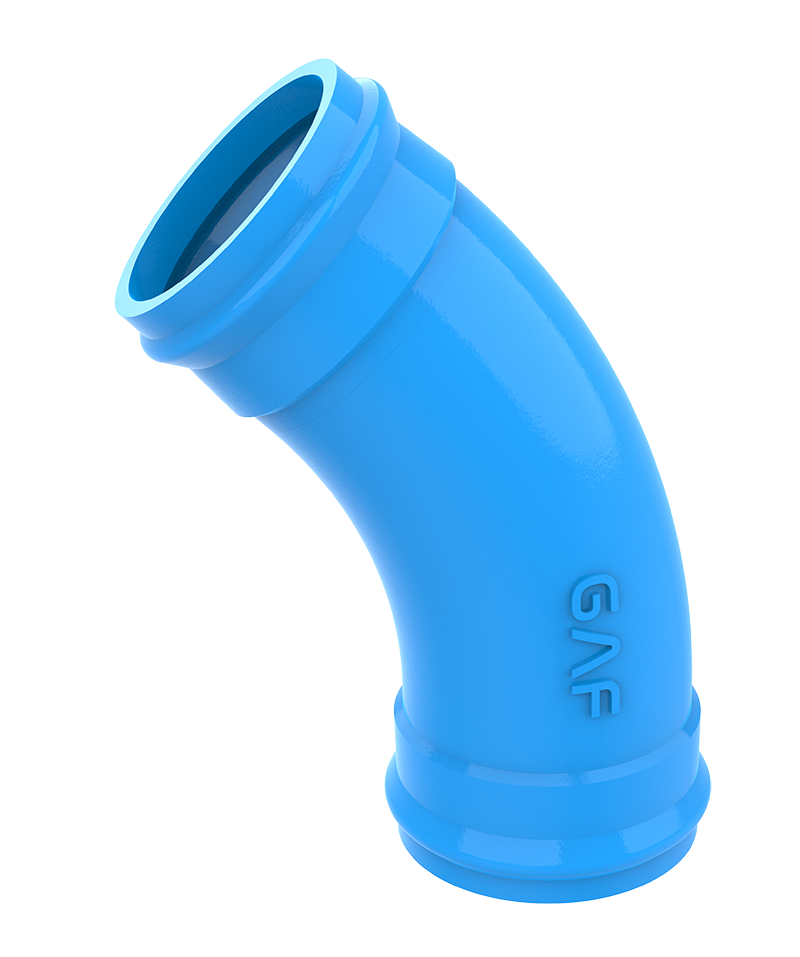

45˚ Double Socket BEND (PVC)
| DN | R | L | Weight |
|---|---|---|---|
| 63 | 50 | 102 | 2.8 |
| 75 | 60 | 113 | 4 |
| 90 | 80 | 120.5 | 5.5 |
| 110 | 100 | 128 | 7.5 |
| 125 | 125 | 133.5 | 10.3 |
| 140 | 125 | 139.5 | 13 |
| 160 | 150 | 149.5 | 17 |
| 200 | 200 | 165.7 | 26 |
| 225 | 200 | 186 | 36 |
| 250 | 250 | 204 | 43 |
| 280 | 250 | 208 | 49.5 |
| 315 | 300 | 219 | 70.5 |
| 355 | 350 | 227 | 88 |
| 400 | 400 | 234 | 120 |
| 500 | 505 | 244 | 165 |
Additional information
| Coating | Black Epoxy, Blue Epoxy, Red Epoxy |
|---|---|
| PN | PN10, PN16, PN25 |
