Description

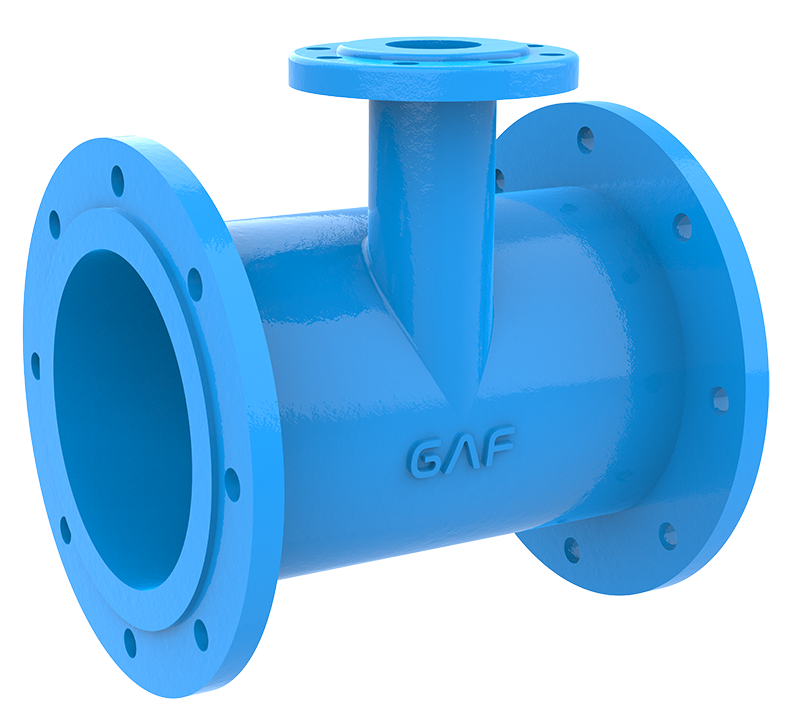

Our Ductile Iron flanged level invert tee is available with body bores ranging from DN80 to DN2600 and branch bores from DN80 to DN2600.
Nominal size | Dimensions | MASS WITH FLANG | ||||
---|---|---|---|---|---|---|
DN | dn | L | H | PN10 | PN16 | PN25 |
100 | 80 | 360 | 195 | 19.5 | 19.5 | 21 |
150 | 80 | 440 | 220 | 29.5 | 29.5 | 32 |
200 | 80 | 520 | 250 | 42.5 | 42.5 | 47 |
100 | 520 | 250 | 43.5 | 43.5 | 48 | |
250 | 80 | 700 | 275 | 66 | 71 | 76 |
100 | 700 | 275 | 68 | 73 | 79 | |
300 | 80 | 800 | 305 | 92 | 97 | 104 |
100 | 800 | 305 | 95.5 | 99 | 105 | |
150 | 800 | 305 | 99 | 104 | 110 | |
350 | 80 | 850 | 340 | 121 | 127 | 144 |
100 | 850 | 340 | 123 | 129 | 146 | |
150 | 850 | 340 | 128 | 134 | 151 | |
400 | 80 | 900 | 365 | 153 | 165 | 187 |
100 | 900 | 365 | 156 | 167 | 190 | |
150 | 900 | 365 | 162 | 171 | 194 | |
200 | 900 | 365 | 167 | 176 | 199 | |
450 | 80 | 950 | 380 | 188 | 204 | 226 |
100 | 950 | 380 | 189 | 205 | 227 | |
150 | 950 | 380 | 197 | 213 | 236 | |
200 | 950 | 380 | 202 | 202 | 241 | |
500 | 80 | 1000 | 400 | 237 | 268 | 292 |
100 | 1000 | 400 | 241 | 272 | 296 | |
150 | 1000 | 400 | 248 | 275 | 297 | |
200 | 1000 | 400 | 255 | 282 | 304 | |
600 | 80 | 1100 | 435 | 350 | 403 | 433 |
100 | 1100 | 435 | 351 | 404 | 434 | |
150 | 1100 | 450 | 360 | 413 | 443 | |
200 | 1100 | 450 | 370 | 423 | 453 | |
700 | 150 | 650 | 500 | 262 | 302 | x |
200 | 650 | 500 | 268 | 308 | x | |
800 | 150 | 690 | 540 | 379 | 417 | x |
200 | 690 | 540 | 388 | 426 | x | |
900 | 150 | 730 | 580 | 481 | 529 | x |
200 | 730 | 580 | 483 | 531 | x | |
1000 | 150 | 770 | 630 | 625 | 708 | x |
200 | 770 | 630 | 627 | 710 | x | |
1100 | 150 | 800 | 660 | 743 | x | x |
200 | 850 | 660 | 773 | x | x | |
1200 | 150 | 850 | 700 | 910 | 1039 | x |
200 | 850 | 700 | 945 | 1074 | x |
Our Ductile Iron flanged level invert tee is available with body bores ranging from DN80 to DN2600 and branch bores from DN80 to DN2600.
Coating | Black Epoxy, Blue Epoxy, Red Epoxy |
---|---|
PN | PN10, PN16, PN25 |
