Description
Our Ductile Iron 22.5˚ Double-Socket Bend is available with body bores ranging from DN80 to DN2600 and branch bores from DN80 to DN2600.

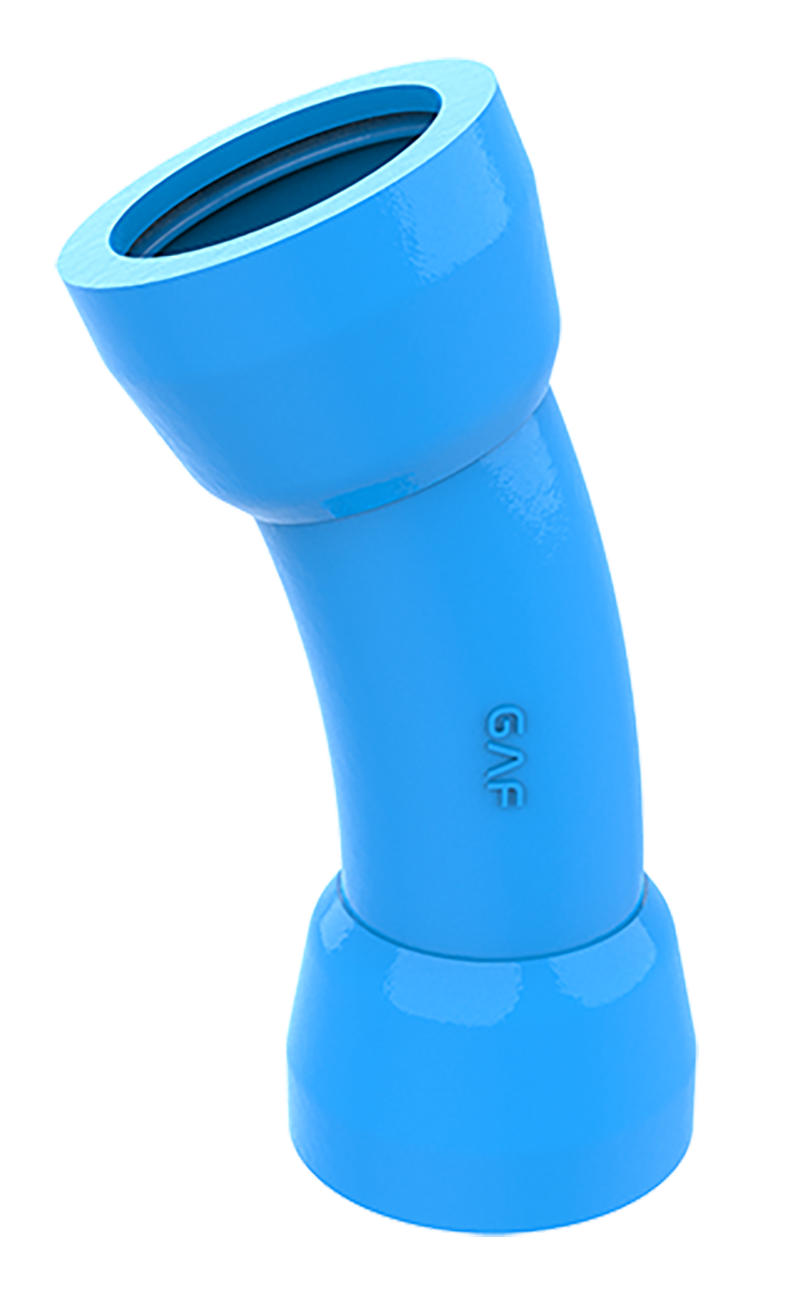

22.5˚ Double-Socket Bend
| DN | e | t | r | Mass |
|---|---|---|---|---|
| 80 | 7 | 40 | 90 | 7.3 |
| 100 | 7.2 | 40 | 110 | 9.3 |
| 125 | 7.5 | 50 | 120 | 12.6 |
| 150 | 7.8 | 55 | 155 | 15.9 |
| 200 | 8.4 | 65 | 195 | 24 |
| 250 | 9 | 75 | 240 | 33.5 |
| 300 | 9.6 | 85 | 305 | 44.5 |
| 350 | 10.2 | 95 | 350 | 58 |
| 400 | 10.8 | 110 | 309 | 74 |
| 450 | 120 | 435 | 95 | |
| 500 | 12 | 130 | 505 | 111 |
| 600 | 13.2 | 150 | 590 | 157 |
| 700 | 14.4 | 175 | 655 | 217 |
| 800 | 15.6 | 195 | 745 | 287 |
| 900 | 16.8 | 220 | 855 | 373 |
| 1000 | 18 | 240 | 945 | 470 |
| 1200 | 22.8 | 260 | 1015 | 716 |
| 1400 | 22.8 | 260 | 1015 | 933 |
| 1600 | 25.2 | 280 | 1115 | 1259 |
| 1800 | 27.5 | 305 | x | 1663 |
| 2000 | 30 | 330 | x | 2144 |
| 2200 | 32.4 | 355 | x | 2707 |
| 2400 | 34.8 | 380 | x | 3359 |
| 2600 | 37.2 | 440 | x | 4087 |
Additional information
| Coating | Black Epoxy, Blue Epoxy, Red Epoxy |
|---|---|
| PN | PN10, PN16, PN25 |
