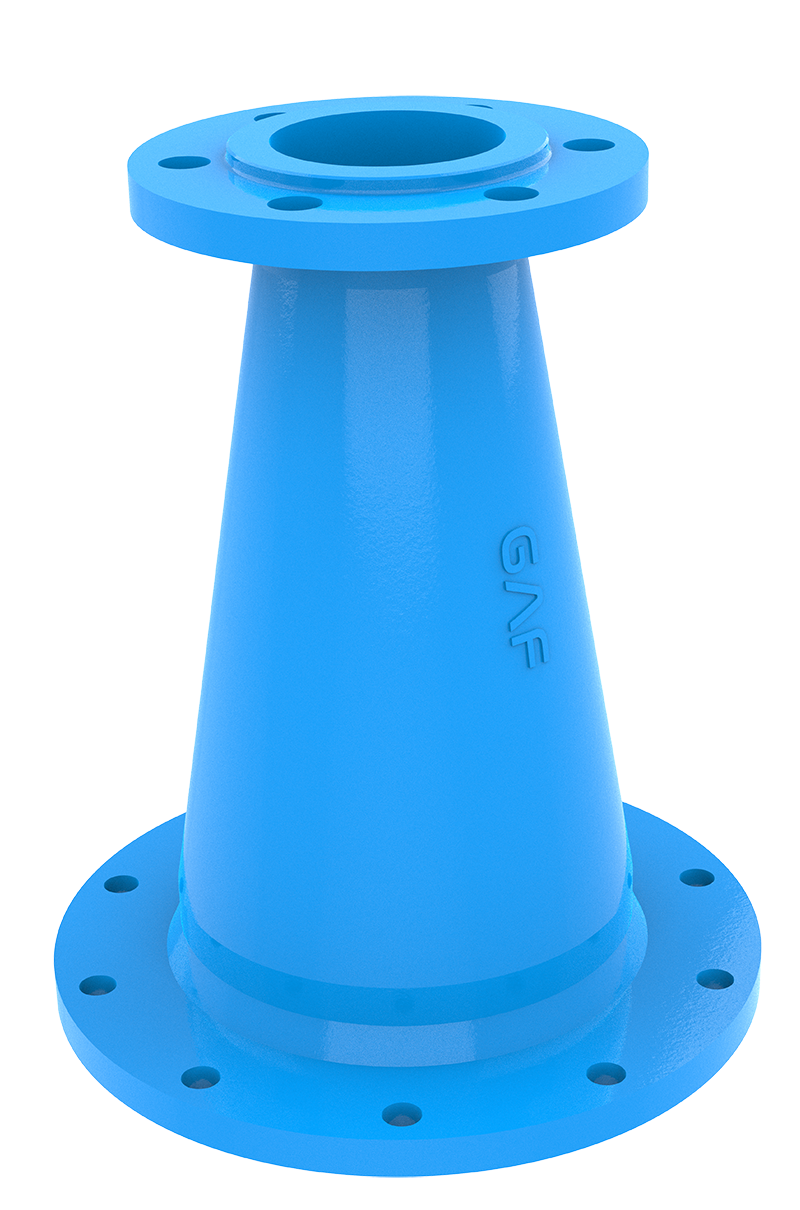

Double Flanged Taper

Large Diameter (DN)	Large Diameter (e1)	Smaller Diameter (DN)	Smaller Diameter (L)	Smaller Diameter (e2)	PN 10	PN 16	PN 25
80	7	60	200	7	7.5	7.5	7.4
	7	65	200	7	7.9	7.9	7.8
100	7.2	80	200	7	9.3	9.3	9.8
125	7.5	100	200	7.2	11.3	11.3	12.5
150	7.8	80	400	7	16.4	16.4	17.4
	7.8	100	300	7.2	15.3	15.3	16.8
	7.8	125	200	7.5	14	14	15.5
200	8.4	100	600	7.2	27.5	27.5	30
	8.4	150	300	7.3	22	21.5	25
250	9	150	600	7.8	39	39	43.5
	9	200	300	8.4	30	29.5	35.5
300	9.6	150	650	7.8	48.5	48.5	55
	9.6	200	600	8.4	52	51.5	59
	9.6	250	300	9	40.5	39.5	49
350	10.2	200	650	8.4	61.5	64	74
	10.2	250	600	9	65.5	67.5	79
	10.2	300	300	9.6	49.5	52.5	66
400	10.8	200	700	8.4	73.5	77.5	90.5
	10.8	250	650	9	77	81.5	96
	10.8	300	600	9.6	80.5	85	101
	10.8	350	300	10.2	58	67	86
450	11.4	250	700	9	89.5	97	112
	11.4	300	650	9.6	93.5	101	117
	11.4	350	600	10.2	95.6	106	126
	11.4	400	300	10.8	70.5	83	105
500	12	300	700	9.6	109	122	138
	12	350	650	10.2	111	127	145
	12	400	600	10.3	110	130	153
	12	450	300	11.4	83	104	126
600	13.2	350	750	10.2	147	174	193
	13.2	400	700	10.8	150	178	201
	13.2	450	650	11.4	151	183	206
	13.2	500	600	12	149	190	216
700	14.4	400	800	10.8	196	212	x
	14.4	450	750	11.4	197	217	x
	14.4	500	700	12	200	255	x
	14.4	600	600	13.2	195	236	x
800	15.6	450	900	11.4	263	286	x
	15.6	500	800	12	256	284	x
	15.6	600	700	13.2	260	298	x
	15.6	700	600	14.4	250	285	x
900	16.8	500	1000	12	338	370	x
	16.8	600	800	13.2	318	360	x
	16.8	700	700	14.4	321	352	x
	16.8	800	600	15.6	308	352	x
