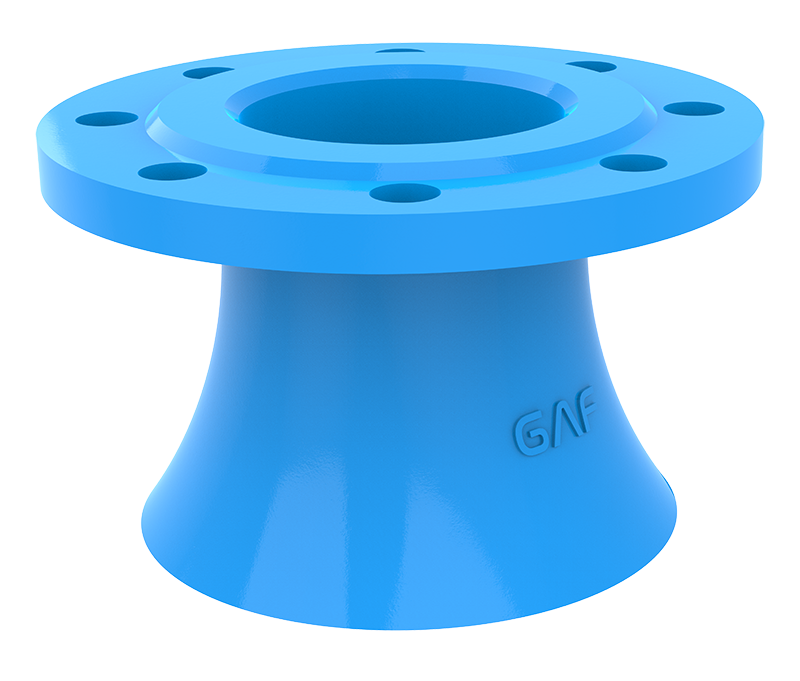

Bell Mouth

DN	D	L	Mass with flange (PN10)	Mass with flange (PN16)	Mass with flange (PN25)
80	150	130	5.2	5.2	5.2
100	175	135	6.2	6.2	6.7
150	230	150	10.1	10.1	11.1
200	290	170	15	14.8	16.8
250	345	183	21	20.5	24.5
300	405	205	28	28.5	34
350	460	220	35	38.5	46
400	520	240	45	49.5	60.5
450	575	255	54	62	73
500	635	275	67	80	91
600	750	310	96	120	132
700	865	345	135	146	x
800	980	380	182	197	x
900	1095	415	231	250	x
1000	1210	450	297	331	x
1100	1325	485	370	405	x
1200	1440	520	457	512	x
1400	1670	590	646	702	x
1500	1780	625	763	851	x
1600	1900	660	906	995	x
1800	2130	730	1185	1297	x
2000	2360	800	1530	1668	x
2100	2475	835	1753	1918	x
2200	2590	870	1964	2135	x
2400	2820	940	2485	2713	x
2600	3050	1010	2989	3242	x
