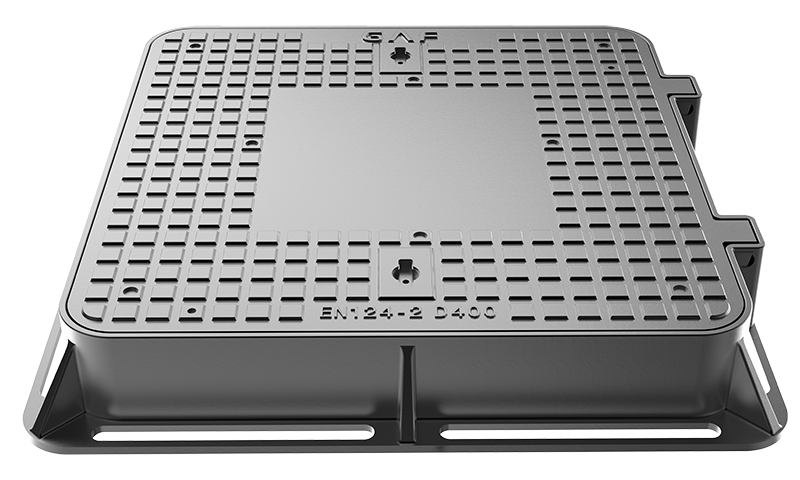

INSPECTION CHAMBER – Single Seal with Hinges
Standard
EN124-2:2015 / Class D400
Material
EN124-2:2015 / Class D400
Pattern
Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover.
Design
Frame:
Square/Rectangular base design.
Cover:
Square/Rectangular cover design with hinge and non slip pattern, single seal.
Coating
Applied Bitumen coat according to BS 3416 or Epoxy Paint.
Mark
All manhole covers are marked with the following:
(Name of Manufacturer – EN124 Class Load and Material)
Features
Group 4 - D400
Carriageways of roads (including pedestrian streets), hard shoulders and parking areas.
| Art. No. | Over base | Clear Open | Height |
|---|---|---|---|
| GAF-G4D-15001 | 520x520 | 400x400 | 100 |
| GAF-G4D-15002 | 740x520 | 600x400 | 100 |
| GAF-G4D-15003 | 740x740 | 600x600 | 100 |
| GAF-G4D-15004 | 940x940 | 800x800 | 100 |
| GAF-G4D-15005 | 1040x1040 | 900x900 | 100 |
| GAF-G4D-15006 | 1040x740 | 900x600 | 100 |
| GAF-G4D-15007 | 1180x1180 | 1000x1000 | 100 |
| GAF-G4D-15008 | 1380x1380 | 1200x1200 | 100 |
| GAF-G4D-15009 | 1580x840 | 1400x700 | 100 |
