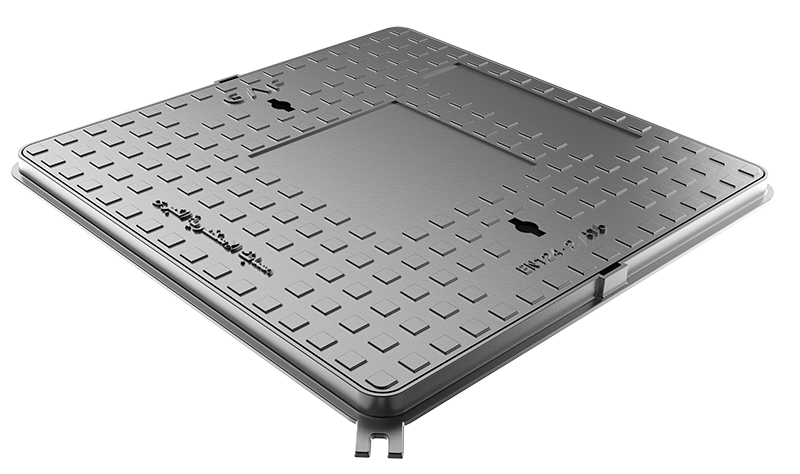

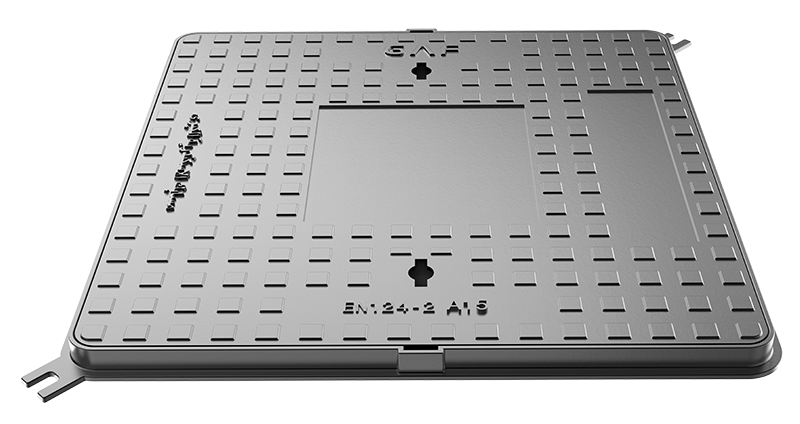

INSPECTION CHAMBER – Single Seal without Hinges
Standard
EN124-2:2015 / Class A15
Material
EN124-2:2015 / Class A15
Pattern
Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover.
Design
• Non ventilated cover to prevent ventilated air spreading from underground to the outside.
• Square cover base design, single seal.
Coating
Applied Bitumen coat according to BS 3416 or Epoxy Paint.
Mark
All manhole covers are marked with the following:
(Name of Manufacturer – EN124 Class Load and Material)
Features
Group 1 - A15
Areas which can only be used by pedestrian and pedal cyclists.
| Art. No. | Over base | Clear Open | Height |
|---|---|---|---|
| GAF-G1D-17001 | 360 x 360 | 300 x 300 | 28 |
| GAF-G1-D-17001 | 475 x 475 | 400 x 400 | 28 |
| GAF-G1D-17001 | 575 x 575 | 500 x 500 | 28 |
| GAF-G1D-17001 | 675 x 675 | 600 x 600 | 28 |
| GAF-G1D-17001 | 900 x 900 | 800 x 800 | 28 |
