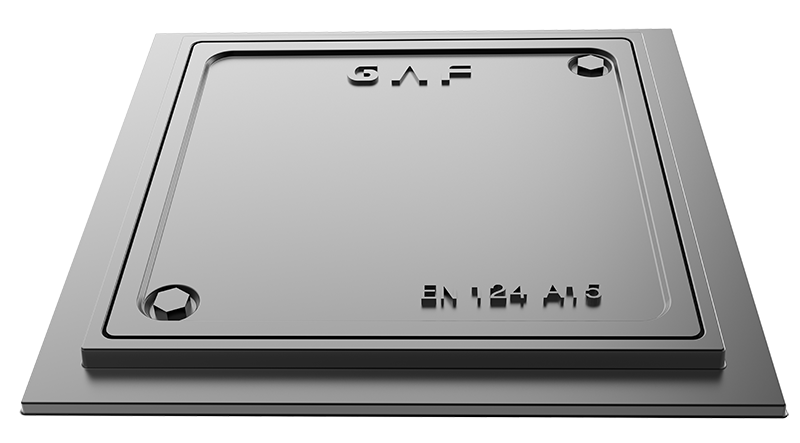

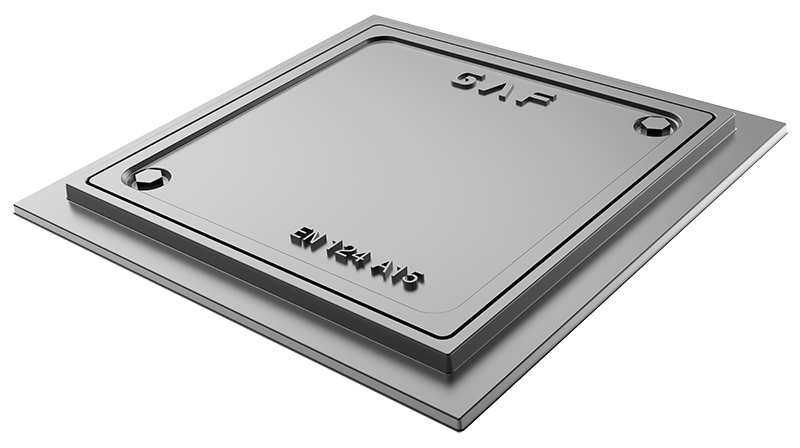

INSPECTION CHAMBER – Gully Trap
Standard
EN124-2:2015 / Class B125
Material
EN124-2:2015 / Class B125
Pattern
Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover.
Design
• Non ventilated cover to prevent ventilated air spreading from underground to the outside.
• Square cover base design, single seal.
Coating
Applied Bitumen coat according to BS 3416 or Epoxy Paint.
Mark
All manhole covers are marked with the following:
(Name of Manufacturer – EN124 Class Load and Material)
Features
Group 2 - B125
Areas which can only be used by pedestrian and pedal cyclists.
| Art. No. | Over base | Clear Open | Height |
|---|---|---|---|
| GAF-G2G-1001 | 300 x 300 | 240 x 240 | 18 |
