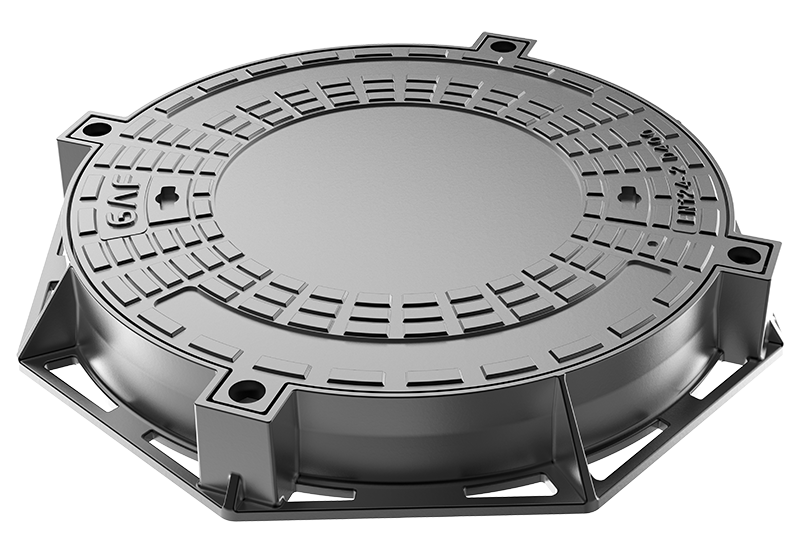

Round Cover – Octagon Frame with 4 bolts
Standard
EN124-2:2015 / Class D400
Material
EN124-2:2015 / Class D400
Pattern
Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover.
Design
• Round cover with 4 bolts and anti-slippery surface in compliance with EN124, single seal.
• Non ventilated cover to prevent ventilated air spreading from underground to the outside.
•4 bolts made from stainless added to the manhole cover.
• Single seal EPDM rubber seal
Coating
Applied Bitumen coat according to BS 3416 or Epoxy Paint.
Mark
All manhole covers are marked with the following:
(Name of Manufacturer – EN124 Class Load and Material)
Features
Group 4 - D400
Carriageways of roads (including pedestrian streets), hard shoulders and parking areas.
| Art. No. | Over base | Clear Open | Height |
|---|---|---|---|
| GAF-G4D-13301 | 740x740 | 600 Ø | 100 |
| GAF-G4D-13302 | 900x900 | 760 Ø | 100 |
