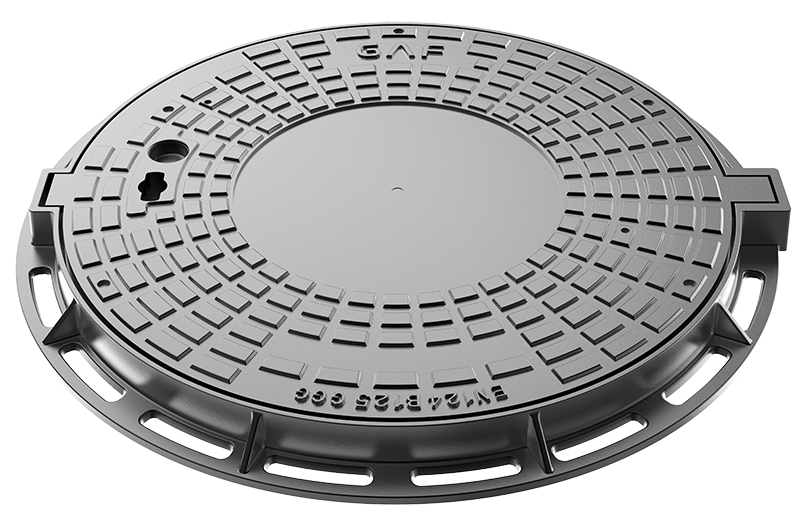

Round Cover – Round Frame with hinge
Standard
EN124-2:2015 / Class B125
Material
EN124-2:2015 / Class B125
Pattern
Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover.
Design
• Round cover with anti-slippery, single seal.
• Non ventilated cover to prevent vitiated air spreading from underground to the outside.
Coating
Applied Bitumen coat according to BS 3416 or Epoxy Paint.
Mark
All manhole covers are marked with the following:
(Name of Manufacturer – EN124 Class Load and Material)
Features
Group 2 - B125
Footways, pedestrian and comparable areas, car parks or car parking decks.
| Art. No. | Over base | Clear Open | Height |
|---|---|---|---|
| GAF-G2D-13001 | 740 Ø | 600 Ø | 42 |
| GAF-G2D-13002 | 900 Ø | 760 Ø | 42 |
