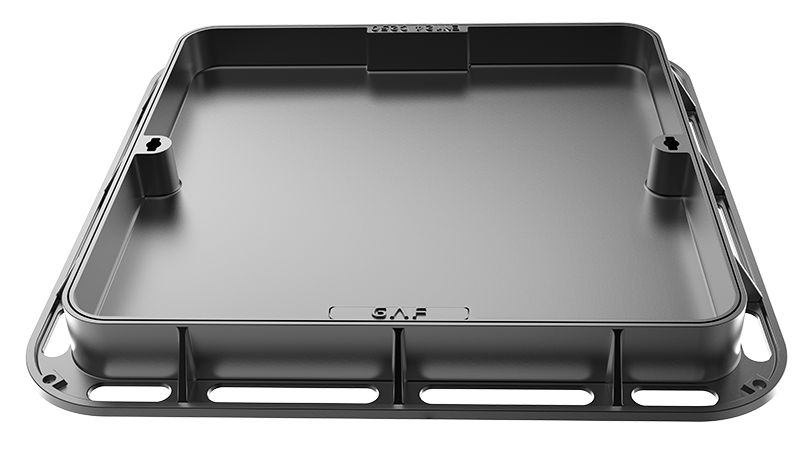

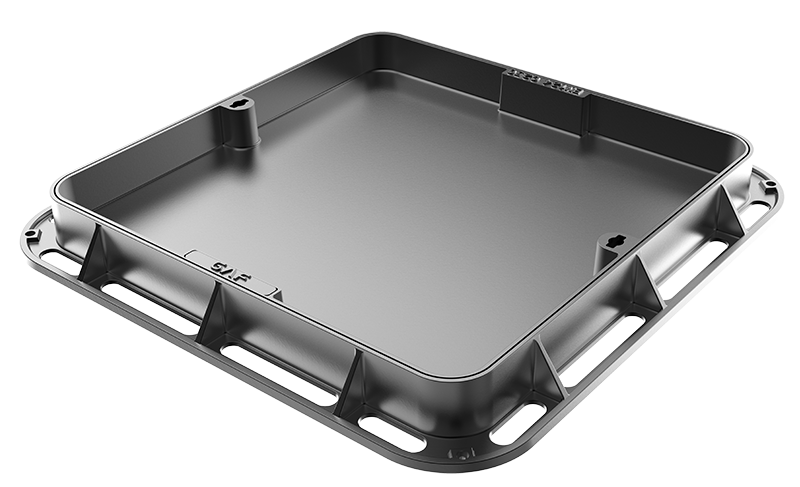

RECESSED – Inspection Chamber

Standard

EN124-2:2015 / Class C250

Material

EN124-2:2015 / Class C250

Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover.

Square/Rectangular frame base design, single seal.

Categories Manhole & Grates, Recessed Tag Recessed

Applied Bitumen coat according to BS 3416 or Epoxy Paint.

All manhole covers are marked with the following:
(Name of Manufacturer – EN124 Class Load and Material)

Group 3 - C250

For gully tops installed in the area of kerbside channels of roads.

Art. No.	Over base	Clear Open	Height
GAF-G3D-18001	520x520	400x400	90
GAF-G3D-18002	740x520	600x400	90
GAF-G3D-18003	740x740	600x600	90
GAF-G3D-18004	1040x740	900x600	90
GAF-G3D-18005	940x940	800x800	90
GAF-G3D-18006	1040x104	900x900	90
GAF-G3D-18007	1180x1180	1000x1000	90
GAF-G3D-18008	1380x1380	1200x1200	90
GAF-G3D-18009	1580x840	1400x700	90
