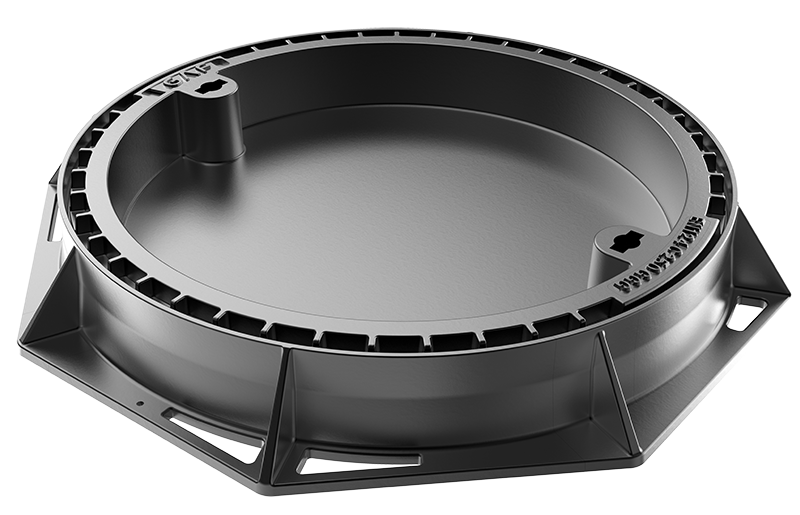

RECESSED ROUND – Manhole Cover

Standard

EN124-2:2015 / Class B125

Material

EN124-2:2015 / Class B125

Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover.

Round cover base design, single seal.

Categories Manhole & Grates, Recessed Tag Recessed

Applied Bitumen coat according to BS 3416 or Epoxy Paint.

All manhole covers are marked with the following:
(Name of Manufacturer – EN124 Class Load and Material)

Group 3 - C250

For gully tops installed in the area of kerbside channels of roads.

Art. No.	Over base	Clear Open	Height
GAF-G2D-18001	520x520	400x400	90
GAF-G2D-18002	740x520	600x400	90
GAF-G2D-18003	740x740	600x600	90
GAF-G2D-18004	940x940	800x800	90
GAF-G2D-18005	1040x740	900x600	90
GAF-G2D-18006	1040x1040	900x900	90
GAF-G2D-18007	1180x1180	1000x1000	90
GAF-G2D-18008	1380x1380	1200x1200	90
GAF-G2D-18009	1580x840	1400x700	90
