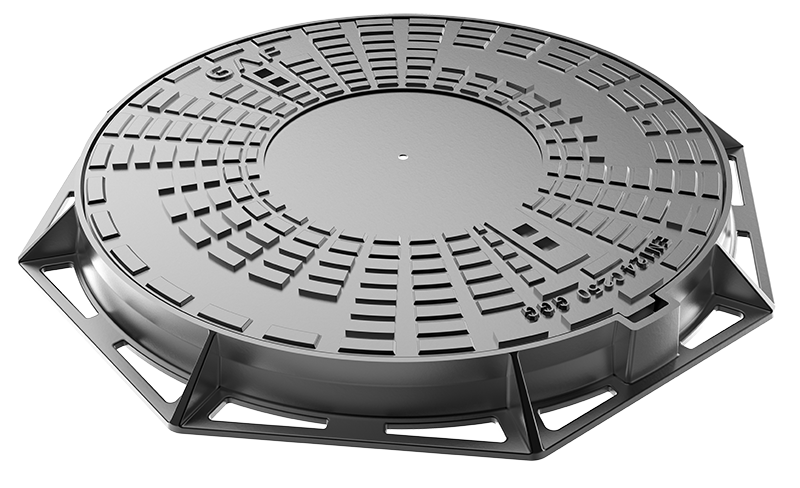

Round Cover – Octagon Frame without Hinge
Standard
EN124-2:2015 / Class C250
Material
EN124-2:2015 / Class C250
Pattern
Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover.
Design
• Round cover with anti-slippery surface in compliance with EN124.
• Non ventilated cover to prevent vitiated air spreading from underground to the outside.
Coating
Applied Bitumen coat according to BS 3416 or Epoxy Paint.
Mark
All manhole covers are marked with the following:
(Name of Manufacturer – EN124 Class Load and Material)
Features
Group 3 - C250
For gully tops installed in the area of kerbside channels of roads.
| Art. No. | Over base | Clear Open | Height |
|---|---|---|---|
| GAF-G3D-13001 | 400x400 | 300 Ø | 60 |
| GAF-G3D-13002 | 500x500 | 400 Ø | 60 |
| GAF-G3D-13003 | 620x620 | 500 Ø | 60 |
| GAF-G3D-13004 | 740x740 | 600 Ø | 60 |
| GAF-G3D-13005 | 920x920 | 760 Ø | 60 |
